Geometric Shapes

The PlasmaCAM DesignEdge™ software includes simple CAD functions that let you quickly draw precise shapes on screen. You can also import drawings from other CAD programs in DXF format. Automatic functions clean up drawings, connecting broken pieces together. When you convert parts to cut paths, the software automatically adds lead-ins for piercing and offsets the edges to compensate for the kerf width of the torch (this makes parts come out accurately even though the torch removes a slot of material).

This powerful machine makes heavy production easy!


The machine is so accurate and versatile,
you'll make parts you couldn't make before.



This control panel is only 11 inches long. Notice the

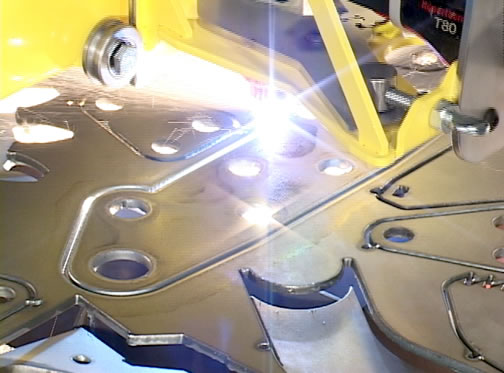

incredible precision and detail in the cut edges.

Make intricate mechanical parts like these!


Click on any image to enlarge!

Most of the mechanical parts shown throughout this website were drawn directly in the PlasmaCAM DesignEdge™ software, without the need for any other program! It's easy to copy parts and make nested arrays. The machine can cut as fast as 1000 inches/minute, giving you a whole new level of production capability.
